W460 -> Fuse 1 & Rear left stop light issue

2 replies [Last post]
Fri, 09/02/2024 - 14:37
ervanario
ervanario's picture
Offline
Joined: 20.03.2010
Location: Évora - Portugal

Hello togheter,

I'm having a weird situation on my 1986 300GD. The fuse 1 blew. I replace it and as soon as I turn on the presence light the brake light came on. With the open circuit on the fusebox the brake light is working fine but as soon as I connect the fuse it light up togheter with the presence light.
During a small trip with lights on the last fuse also blew and the diesel, temp gauges and turn lights became off. Any thoughts on this?

Thank you in advance for your support. Regards.

Top
Fri, 09/02/2024 - 20:35
#1
Jdring
Jdring's picture
Offline
Joined: 12.04.2004
Location: South of Oxford, UK. 87' 230GE SWB Manual, 89' 230GE SWB Auto, 2012 G350Bluetec LWB
GWOA Groups: Committee, Members
Re: W460 -> Fuse 1 & Rear left stop light issue

Hi,

you are not a full member so cannot get to the docs and wiring diagrams in the members sections, so here they are.

You need to see what the Fuse 1 is covering, and find the ground or short circuit there.  It sounds like it could be in the wiring loom, behind the dash, rubbing through onto metal.  Just a wild guess at this point.

(can you see the attached files?)

I made you a temp Member!

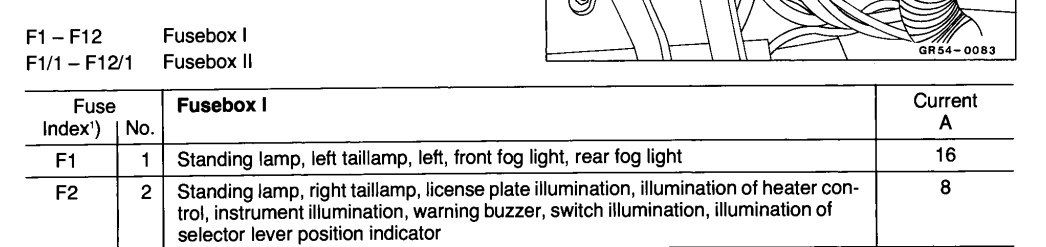

snippet F1.jpg

Top
Mon, 12/02/2024 - 21:37
#2
ervanario
ervanario's picture
Offline
Joined: 20.03.2010
Location: Évora - Portugal
Re: W460 -> Fuse 1 & Rear left stop light issue
Thank you veruly much. Yes i can. Lets dig into
