Please Help - leaking fluid rear wheel, but not brakes...?!?
Hi All,

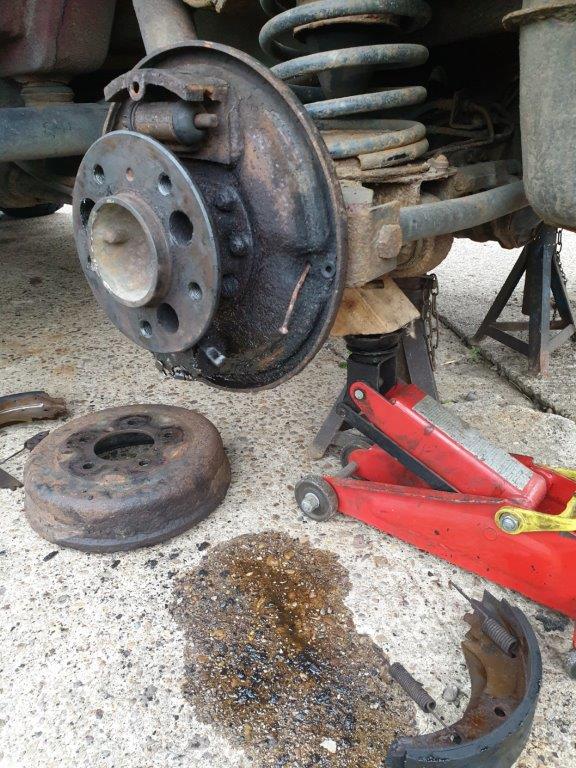

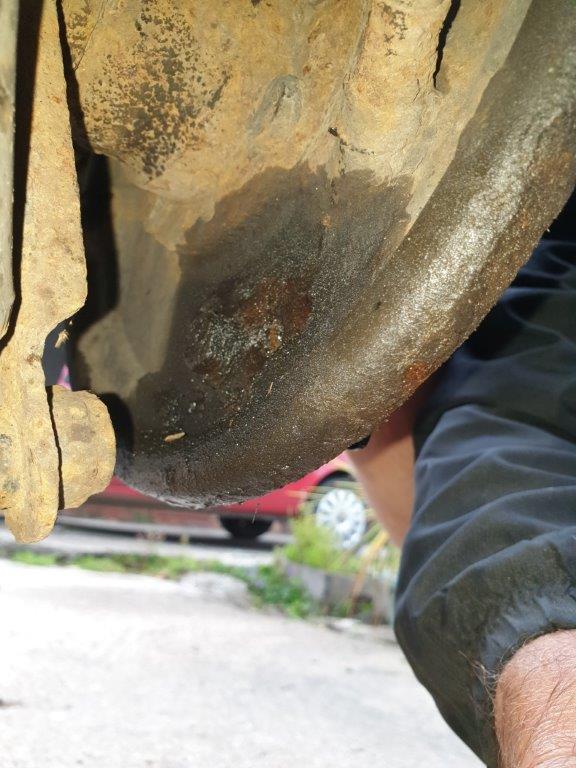

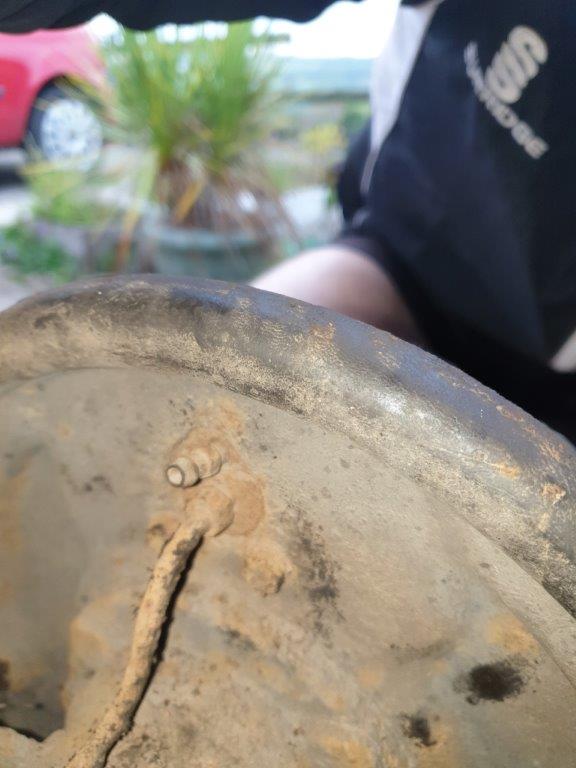

Returned tonight to find 'sweet sickly' smelling oil (sure any mechanic would recognise) dripping from rear wheel. Initial thoughts brake slave cylinder seals gone, but on inspection no visble leak from slave or brake pipe. Have attached images hopefully showing issue. Note car had been on angle down to this wheel as opposite wheel has been removed whilst working on leaking fuel filler pipe (one of multiple ongoing 'projects'!!!).
Not familiar with this, but would appear fluid leaking from the axle? What might this be, or more importantly what do I need to do; remove wheel attaching plate (six bolts?), then... HELP PLEASE
Cheers All
Axle oil and rear hub seal failure by the looks
A6013500468 is the kit you'll need per side and comes as part of the bearing
Probably not a job to tackle yourself
please note I am only planning on removing shaft prior to taking to a specialist to get bearings etc. replaced (always follow Gav's advice!)
JOIN THE GWOA
This website and forum are provided for the benefit of enthusiasts and owners of all Mercedes Benz off road vehicles, in particular the G Wagen. The costs of development, upkeep and provision of the site are met entirely by the annual subscriptions of club members. If you are using the site and are not a member of the G Wagen Owners Association please consider joining. You will have access to areas on the site that are not open to non members, to club trips and meetings and to technical assistance. In addition your contribution (only £25 annually) will help us maintain and develop our website for future users.
Who's new
- Jaffa_JIM_23
- Wrabstar
- GG
- KTMSCANIA22
- 280ge
Hi,
Following workshop manual (attached, removal rear axle shaft), I have removed the 6 x attachment nuts holding bearing cover (5), and now a case of "Pull out rear axle shaft" (6) - anybody any clues/advice/strategies how to do this? Or is it case as my neighbour keeps shouting "use a bigger hammer!", I can't get it to budge :(
Cheers
