Bushing for a Stabilus Steering Damper for my 1993 w463

16 replies [Last post]
sharon
sharon's picture
Offline
Joined: 24.02.2018
GWOA Groups: Members

HI

I have just joined GWOA.

I have had my G for about 12 years and have been going to join for ages.  It is a 1993 w463.

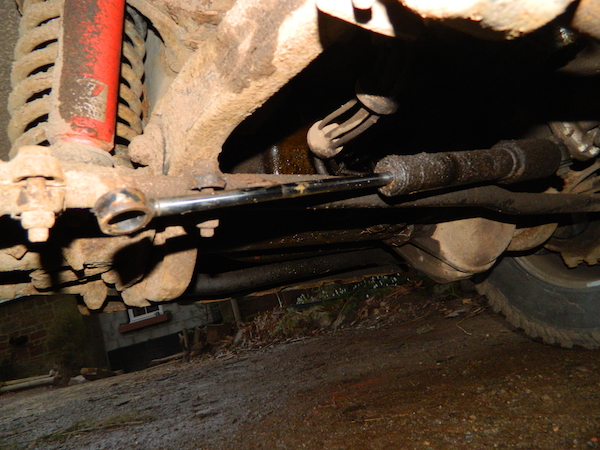

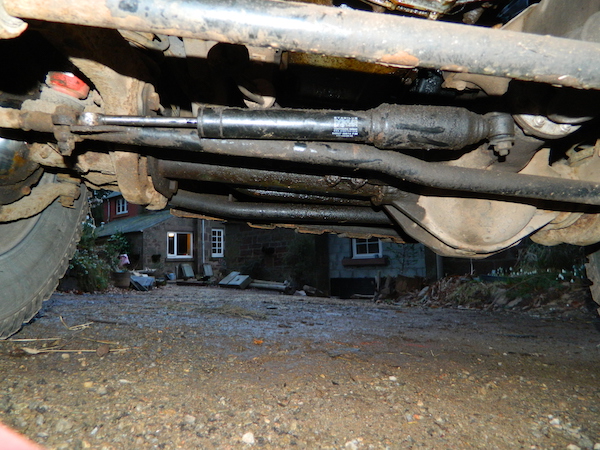

My G has just returned from some welding on the chassis and I have found that the steering damper has lost its bushing and botlts, etc.

I really do not want to purchase a complete new one as this one was working fine, but Mercedes tell me that they do not sell the bushings seperately and I will have to purchase a complete new one.

The Steering Damper i have is a Stablilus.  Do you know where I can purchase a bushing for it?

Your help and assistance would be much appreciated.



Barry

Arnie
Arnie's picture
Offline
Joined: 12.04.2004
Location: London
GWOA Groups: Committee, Members
Re: Bushing for a Stabilus Steering Damper for my 1993 w463

Hello, and welcome !


I'm afraid that you will have to search around for something that fits, unless someone on the forum happens to have a spare from an old or worn unit. Sometimes MB will say that parts are now only available as complete units, only to find that when you collect them, they actually come in two or three separate packs with separate part numbers. However, I think the steering damper only ever came as a complete part with the bushes. However the mounting bracket and fasteners are separate items.



sharon
sharon's picture
Offline
Joined: 24.02.2018
GWOA Groups: Members
Re: Bushing for a Stabilus Steering Damper for my 1993 w463

Thanks Arnie



JASONGDS
JASONGDS's picture
Offline
Joined: 15.07.2011
Location: High Peak
GWOA Groups: Members
Re: Bushing for a Stabilus Steering Damper for my 1993 w463

MB will only sell you the complete damper, if the other end is ok, an engineering place might be able to make one,? Its quick to remove!

markhowes
markhowes's picture
Offline
Joined: 15.01.2014
GWOA Groups: Members
Re: Bushing for a Stabilus Steering Damper for my 1993 w463

When you do refit I highly recommend that you add a big fat heavy duty washer to the outside of the bush. This isn't shown on the MB system as necessary. I fitted a new damper to my 1993 463 and just over a year later I suffered the same problem as you. I couldn't find anywhere to fit a new bush so purchased and fitted a new unit plus the washer. No problem so far.

g wagon g
g wagon g's picture
Offline
Joined: 21.04.2014
Location: uk
GWOA Groups: Members
Re: Bushing for a Stabilus Steering Damper for my 1993 w463

Look on the net for void bush suppliers. I found some bushes but forget who i got them from

The other option is poly bushes

Just measure the outside of bush and the pin size

Make sure the steel sleeve of original bush is still not in damper or you wont find anything to fit

Often the rubber inner bush falls out but the steel sleeve is still in the damper. I bet it is

                        G

sharon
sharon's picture
Offline
Joined: 24.02.2018
GWOA Groups: Members
Re: Bushing for a Stabilus Steering Damper for my 1993 w463

Thanks to all of your replies.  Very helpful.  If you remember where you purchased the bush, I would appreciate if you would let me know.   Also, thanks for the tip on the washer.   Barry

g wagon g
g wagon g's picture
Offline
Joined: 21.04.2014
Location: uk
GWOA Groups: Members
Re: Bushing for a Stabilus Steering Damper for my 1993 w463

Measure it up and look on the net

I have an old damper but once pressed out the bushes are not re usable

I think the company that made the bush i purchased was metrobond or metrubond

Look on for metalastic bushings or void bushes. Many companies like superpro or polybush should be able to help if you dont find anything

Send me the sizes and i will research it for you

i need bush

outside diameter

width

width and hole size of inner sleeve

Some are the same size bushes on both ends of damper. One or two have different bush sizes

Check to see if the good end fits and is the same as you will have something to go off

The outside diameter is critical. The rest can be adapted to suit as long as the bush is wide enough

Its easy for me but if you dont know heres the help you need

Look on shock absorber bushes or as they should be called properly dampers

Most people list it as a shock absorber though

A spring is really a shock absorber and a damper does just what it says

If you get stuck pm me

sharon
sharon's picture
Offline
Joined: 24.02.2018
GWOA Groups: Members
Re: Bushing for a Stabilus Steering Damper for my 1993 w463

What a nice message.  Thanks for that.   I have just read it.   I will see if I can get a size.   At the moment we are covered in snow.

I got in touch with Stabilus in Germany.  This is what they told me.   However, it is looking like I might have to purchase a complete steering damper.   I will be back in touch.   Again, thanks for your reply. BARRY

Hi Barry,



thanks for contacting us.

We just forwarded your request to our sales partner in the UK for passenger car spare parts, which is company Andrew Page. They will get in contact with you.



For your information, it is the Stabilus part number 084401 which you need. This is the replacement of 948527. It is not possible to get single end pieces, as they are fix installed on this damper.







markhowes
markhowes's picture
Offline
Joined: 15.01.2014
GWOA Groups: Members
Re: Bushing for a Stabilus Steering Damper for my 1993 w463

Not sure how much a Stabilus version is but last time I had to buy the heavy duty version from MB dealer it was £108.68 plus VAT.



g wagon g
g wagon g's picture
Offline
Joined: 21.04.2014
Location: uk
GWOA Groups: Members
Re: Bushing for a Stabilus Steering Damper for my 1993 w463

No Probs

                               Gaz

sharon
sharon's picture
Offline
Joined: 24.02.2018
GWOA Groups: Members
Re: Bushing for a Stabilus Steering Damper for my 1993 w463

Yes, I think that is where I will be going on this.  Thanks.

sharon
sharon's picture
Offline
Joined: 24.02.2018
GWOA Groups: Members
Re: Bushing for a Stabilus Steering Damper for my 1993 w463

Hi G Wagon G

I was finally able to get a schematic from the manufacturer.   Any assistance would be much appreciated.

Regards

Barry



sharon
sharon's picture
Offline
Joined: 24.02.2018
GWOA Groups: Members
Re: Bushing for a Stabilus Steering Damper for my 1993 w463

Hi G Wagon G

I was finally able to get a schematic from the manufacturer.   Any assistance would be much appreciated.

Regards

Barry

g wagon g
g wagon g's picture
Offline
Joined: 21.04.2014
Location: uk
GWOA Groups: Members
Re: Bushing for a Stabilus Steering Damper for my 1993 w463

Hi

Sorry for late reply but i have been so busy

I will look in to the matter

Pester me if i forget in a few days

                             Regards gaz

Pistonhead
Pistonhead's picture
Offline
Joined: 17.12.2006
Location: Loughborough
GWOA Groups: Committee, Members
Re: Bushing for a Stabilus Steering Damper for my 1993 w463

Type "Rubber Bushings" on your browser address bar and a whole host of companies come up. One could have the size you require but selling just one could be an issue for them.

g wagon g
g wagon g's picture
Offline
Joined: 21.04.2014
Location: uk
GWOA Groups: Members
Re: Bushing for a Stabilus Steering Damper for my 1993 w463

Just studied drawing and it gives no size for the bush only the size of the outer tube

Need the inside diameter to get the correct bushes

                                  Gaz
